With end stop (AB) after a maximum of 14 revolutions (also available without end stop)
Holes for M6 screws (pitch circle 48 mm) and M8 screws (pitch circle 60 mm)
Note
Colors and drive shafts available upon request

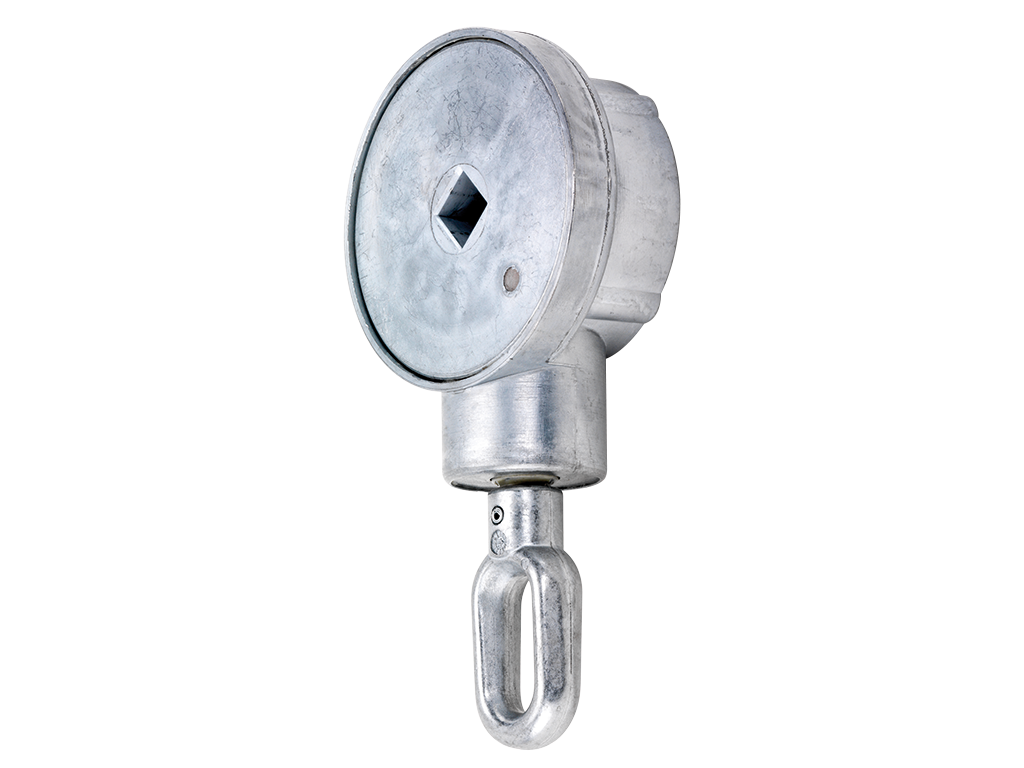

This GEIGER awning gear is available with an oval zinc eyelet, an oval or round plastic eyelet, in various RAL colors
Technical data
Variants
Item No.
Color
End stop (AB)
Drive
Output
Center of the transmission (A)
409F002
blank
with AB
8 mm internal square
13 mm internal square
80 mm
409F004
blank
with AB
Zinc
13 mm internal square
80 mm
409F050
blank
with AB
RAL 7035
13 mm internal square
80 mm
